Inspection/survey/diagnosis

STAMPER ★FW★

（株）ネクスコ・エンジニアリング北海道

Product Summary
Road profile measuring device: Simple IRI measuring device

NETIS登録番号　KT-170109-A

It is low-cost, accurate, does not require a special vehicle, enables real-time data collection, and is highly convenient.
  1. Equivalent accuracy confirmed by comparing and verifying with the regular IRI measurement value of the road surface property measurement vehicle
  2. Achieves low price compared to conventional development equipment
  3. Possible to output IRI value with KP position information at 10m pitch

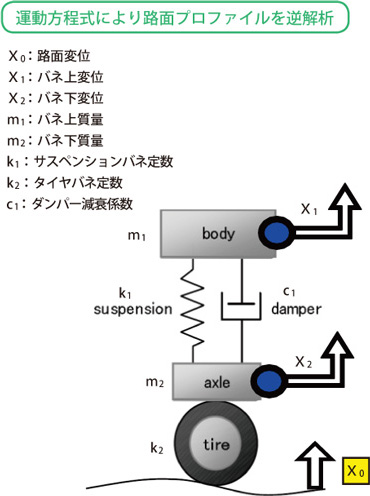

  4. Newly developed algorithm to improve road surface profile measurement accuracy
  5. Ready to measure when needed

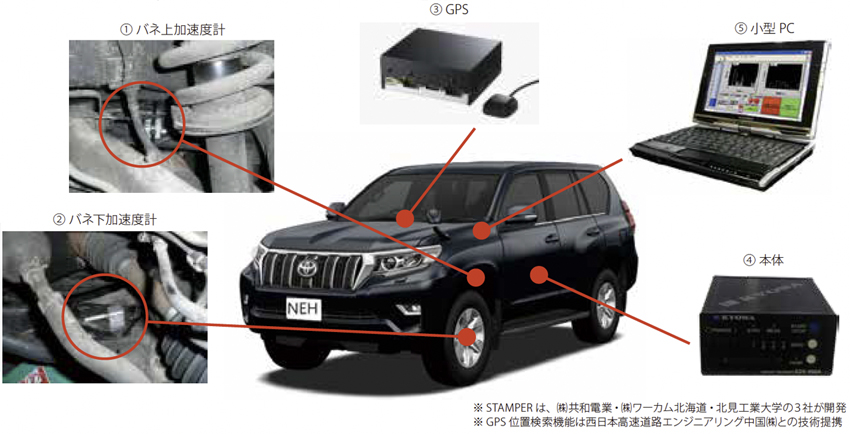

Features/Specifications

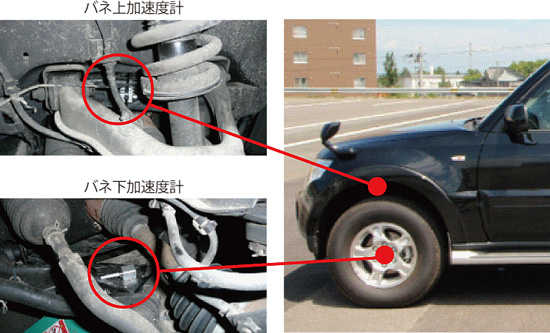

  1. 2 accelerometers
  2. GPS receiver
  3. STAMPER body (amplifier/A/D converter)
  4. FW specification IO device
  5. Tablet PC (acquisition/evaluation)
  6. Various application software separately
  7. Separate link function with road image
Achievements (sales/construction/introduction)

Our company:
Private companies, etc.:

10台
1台
