S&SD drain (舗装浸透水排水装置)
Patent No. 6220638
NEXCO East Japan Engineering Co., Ltd.Product Summary
NETIS Registration Number: KT-180075-A
共同開発（TYPE-A）：東日本高速道路（株）・東拓工業（株）

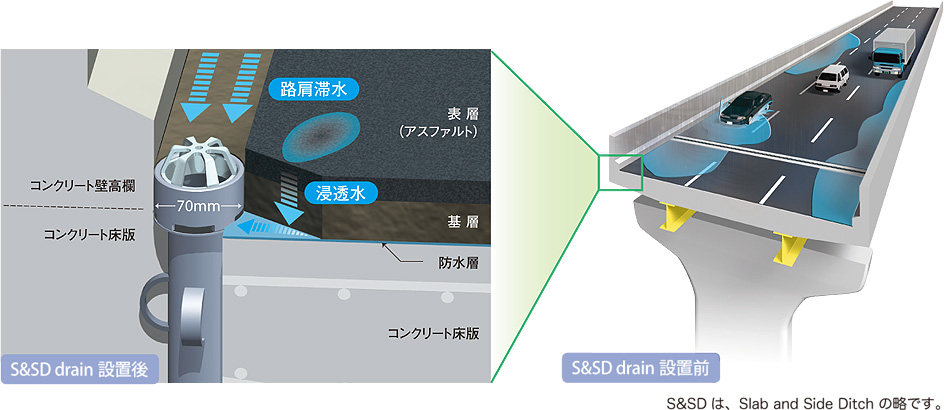

S&SD drain is a bridge drainage device that quickly drains road surface water and water retention on the floor slab.
There are TYPE-A that drains road surface water and seepage water, and TYPE-B that drains only seepage water.
There are TYPE-A that drains road surface water and seepage water, and TYPE-B that drains only seepage water.
① Drainage of road surface water (TYPE-A)
Rainwater that has accumulated on the shoulders will be quickly drained from the grating dome.② Drainage of seepage water (TYPE-A, TYPE-B)
The permeated water that permeates from the pavement and stays on the upper surface of the floor slab waterproofing layer is quickly drained from the drain holes on the side of the head.③ Prevention of clogging in drainage pipe (TYPE-A)
The grating dome and double pipe structure prevent clogging of the drainage pipe due to dirt and dust.If the drain pipe becomes clogged, you can open the grating dome for cleaning.
④Structure with excellent corrosion resistance (TYPE-A, TYPE-B)
Stainless steel (equivalent to SUS 316) with excellent corrosion resistance is used for the grating dome and head.

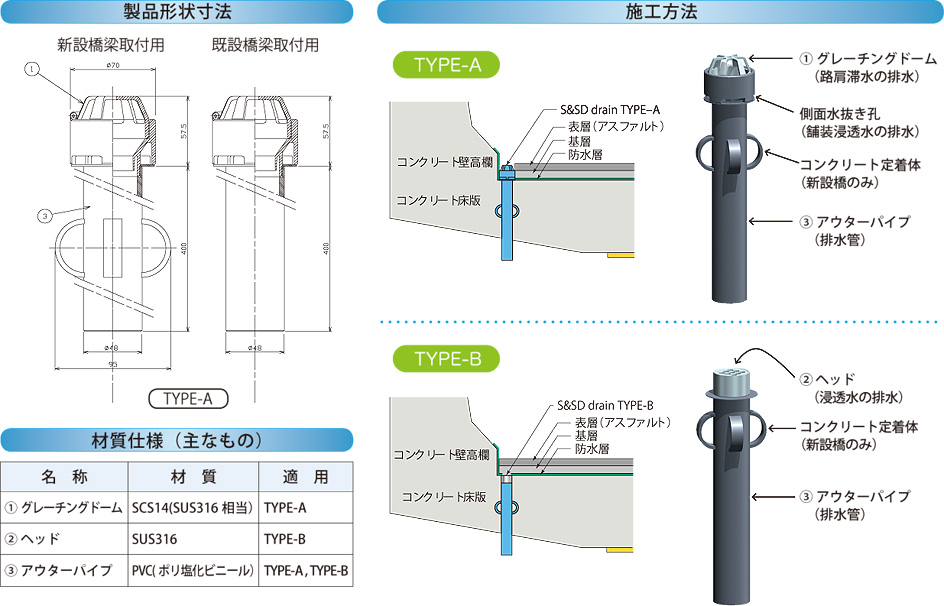

Features/Specifications
Achievements (sales/construction/introduction)
Our company:
Other road companies:
Public bodies:
Private companies, etc.:
95橋
5橋
3橋
19橋
