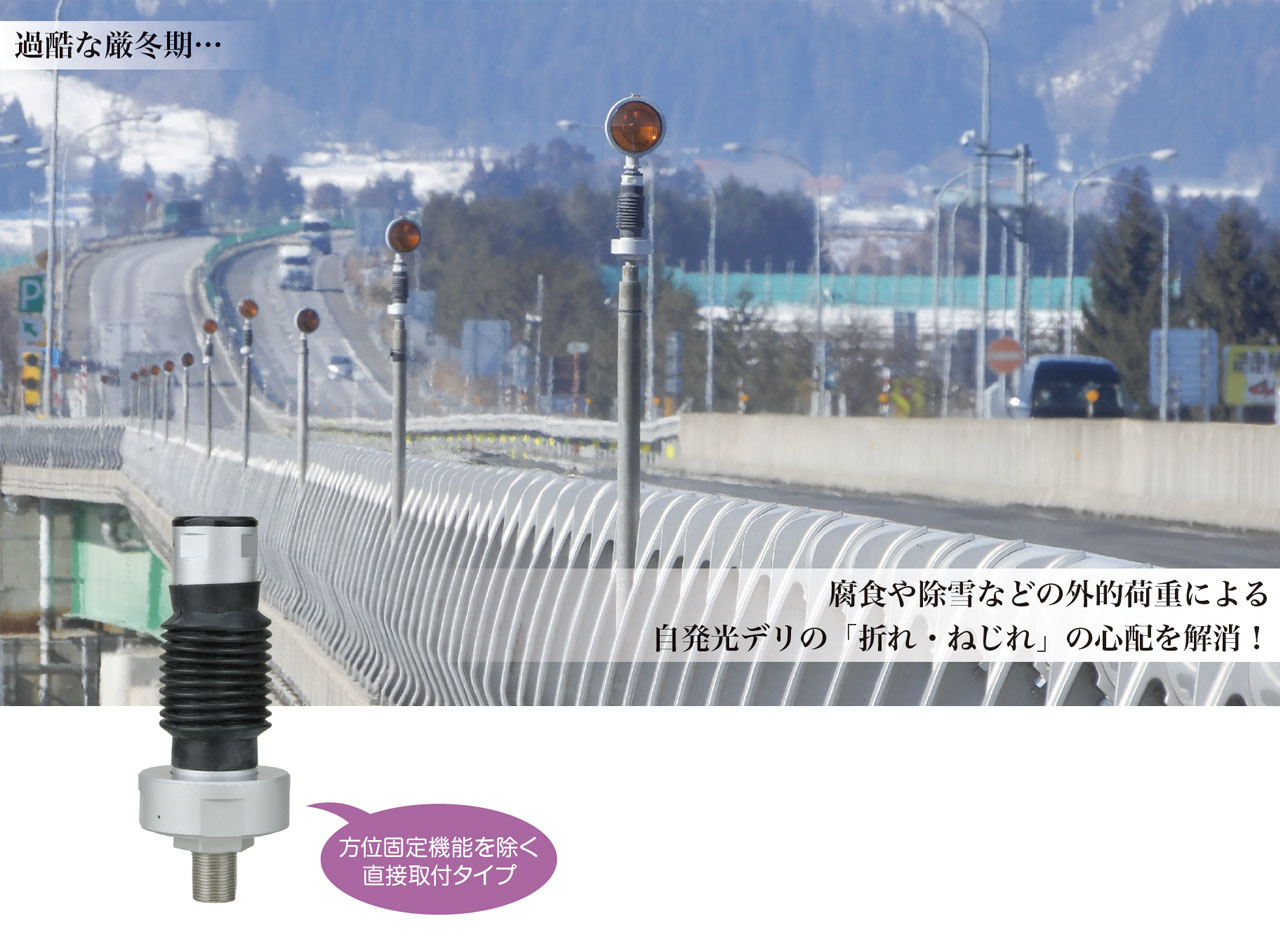

Flexible connector
Patent No. 5303016
Trademark registration No. 5510800
NEXCO Engineering Tohoku Co., Ltd.共同開発:タキゲン製造(株)

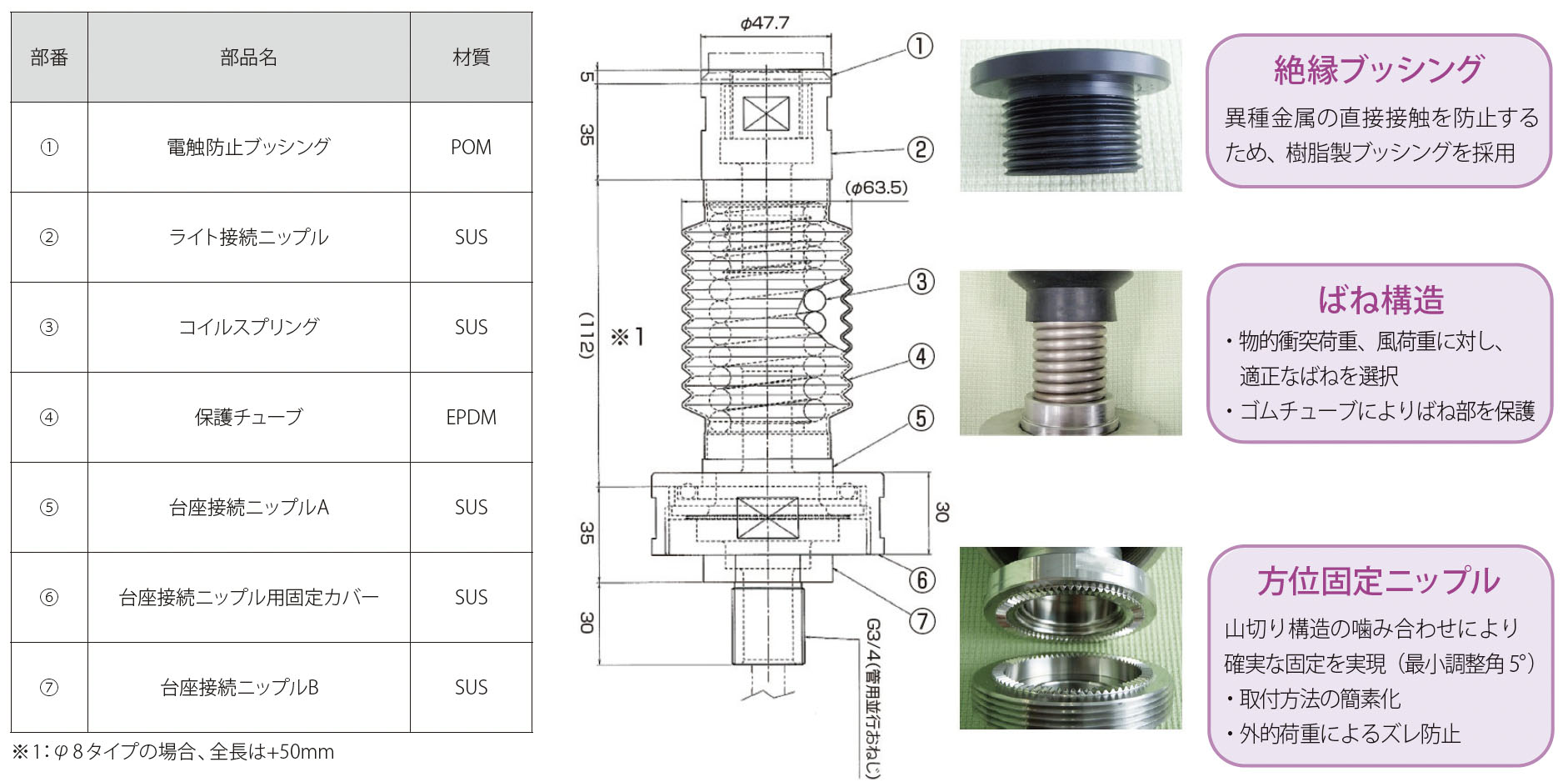

Part number | Part name | Material | Number | Processing | Remarks |
---|---|---|---|---|---|
1 | Light connection nipple | SUS | 1 | Electrolytic polishing | For SPϕ5, ϕ8 |
2 | Base connection nipple A | SUS | 1 | Electrolytic polishing | For SPϕ5, ϕ8 |
3 | Base connection nipple B | SUS | 1 | Electrolytic polishing | |
4 | For pedestal connection nipple Fixed cover |
SUS | 1 | Electrolytic polishing | |
5 | Protective tube | EPDM | 1 | Black | |
6 | coil spring | SUS | 1 | For SPϕ5, ϕ8 | |
7 | Anti-electrostatic bushing | POM | 1 | Black | |
8 | Hexagon socket head set screw | SUS | 1 | Commercial product M5 x L10 Togari destination |
|
9 | 0 ring | NBR | 1 | P52 |
Product performance [durability/weather resistance]
① Conduct a bending durability test and confirm that performance is securedOur company:
Private companies, etc.:
1,077本
1本
