Drain pipe free arm (Bridge drainage pipe flexible mounting bracket)

Utility model No. 3196326

NEXCO Maintenance Tohoku Co., Ltd.
Product Summary

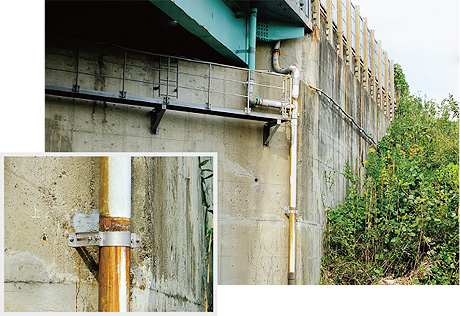

Bridge drainage pipe expansion and contraction mounting bracket that does not require detailed distance measurement from structures such as bridges to the drainage pipe.
Features/Specifications

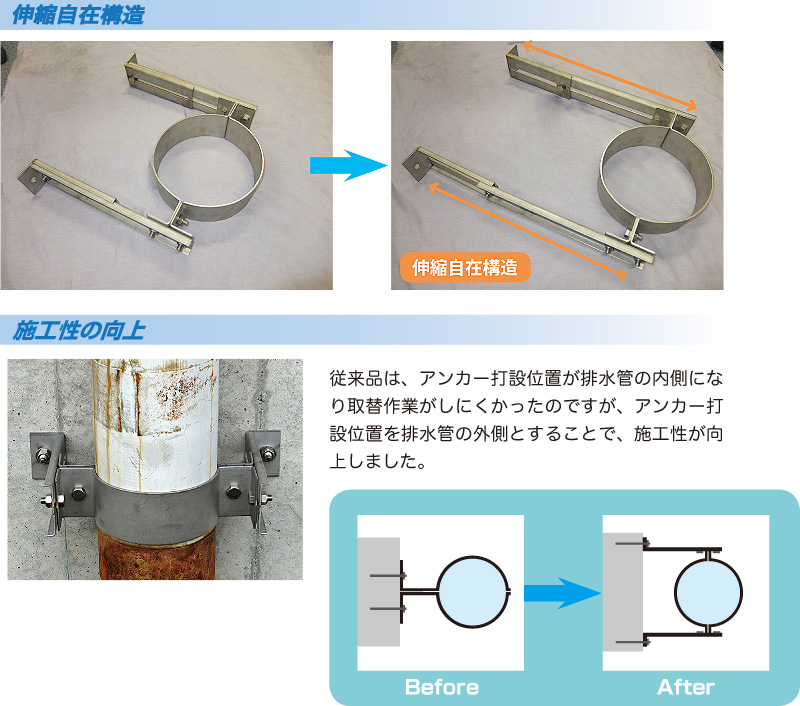

  1. Sliding type retractable structure eliminates the need to measure the distance between the body and drain pipe in detail.
  2. All parts are made of stainless steel to improve corrosion resistance and prolong life.
  3. Since the anchor placement position (mounting and fixing position) is on the outside of the drainage pipe, it is possible to replace the metal fittings without removing the drainage pipe.
  4. Since the drain pipe is supported by two arms, it stably supports the drain pipe load and wind load.
format One-stage arm * Two-stage arm
Drain pipe diameter VP150 VP200 VP150 VP200
Separation distance 0 to 128 mm 0 to 103 mm 129 ~ 344 mm 104-319 mm
*Low priced drain pipe free arm L type is also available. Please feel free to contact us.
Achievements (sales/construction/introduction)

Our company:
Other road companies:
Public bodies:
Private companies, etc.:

1,468組
2,848組
75組
190組
